Independent Component Analysis

Introduction

We imagine there is some data $s \in \mathbb{R}^d$ that is generated via $d$ independent sources.

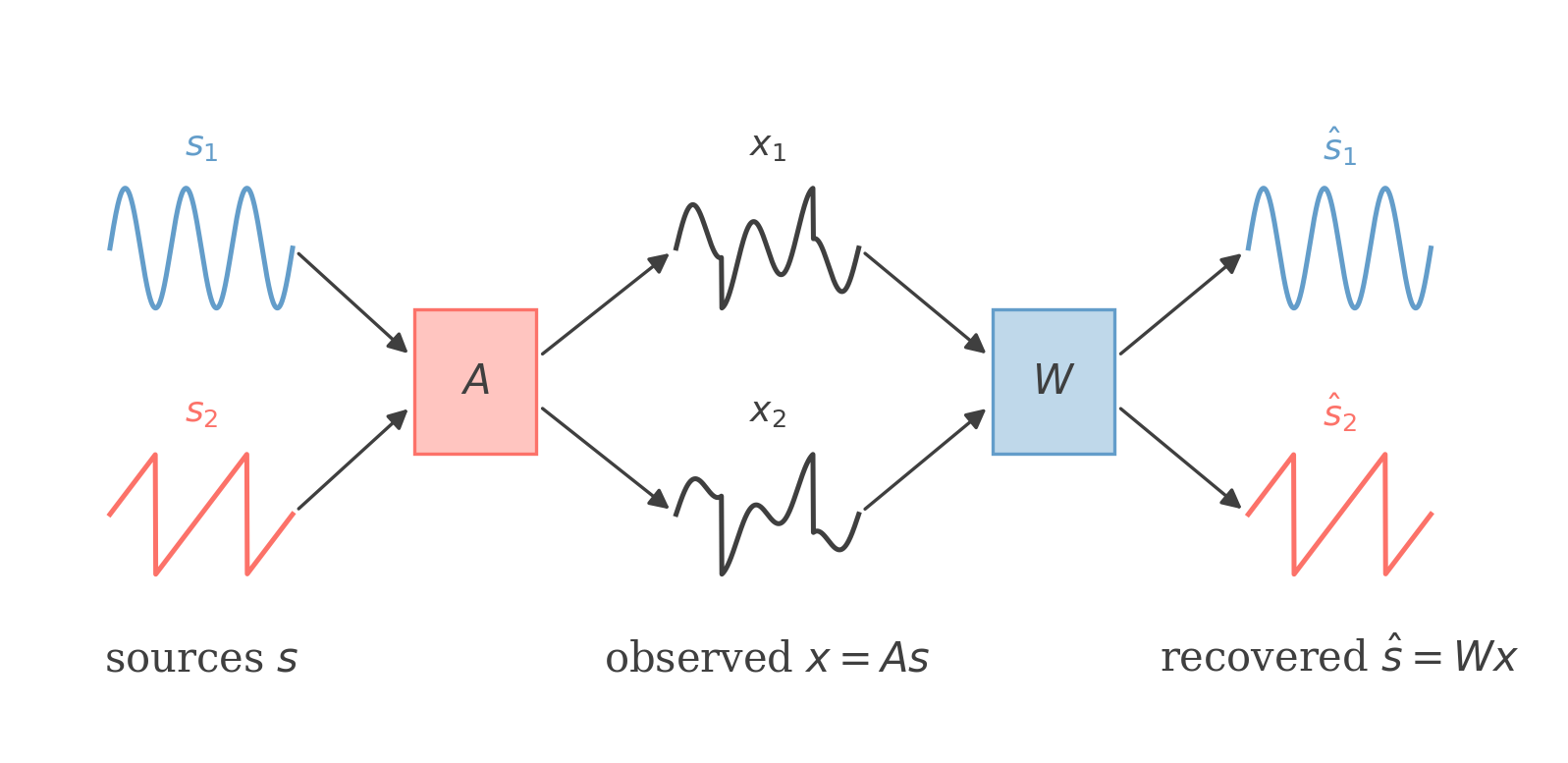

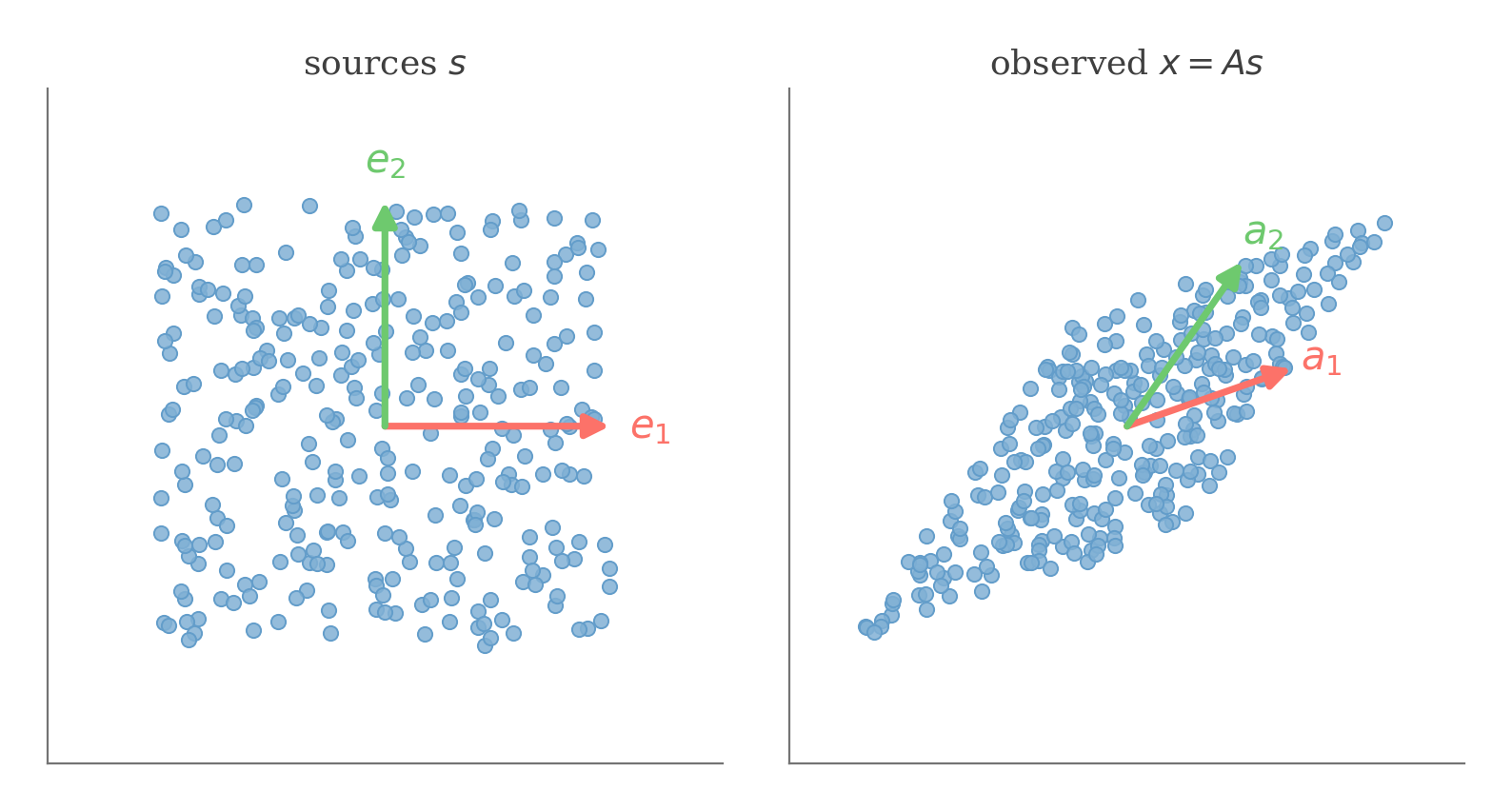

We also have a mixing matrix $A \in \mathbb{R}^{d \times d}$ that mixes the sources to produce the observed data $x \in \mathbb{R}^d$ .

x = A s

Repeated observations of the data give us a set of training samples $\{x^{(1)}, \ldots, x^{(n)} \}$ and we want to find the unmixing matrix $W = A^{-1}$ that allows us to reconstruct the sources.

s = W x

We suppose that the distribution of each source $s_j$ is given by $p_{s}(s_j)$ and is independent of the other sources. Therefore the joint distribution of the sources is:

p(s) = \prod_{j=1}^d p_{s}(s_j)

Change of Variables in Probability

For any two vectors that are linearly related by $s = Wx$ , the absolute value of the determinant of the transformation matrix $W$ gives the factor by which the volume of any region in the space changes.

Therefore, if we have a probability distribution $p(s)$ , the probability distribution of the transformed variables $p(x)$ is given by:

p(s) = \frac{1}{|W|} \cdot p(x)

Since $s = W x$ , the distribution of the sources in terms of the data is:

p(s)\cdot|W| = p(x)

Therefore the distribution of the data in terms of the sources is:

p(x) = \left( \prod_{j=1}^d p_{s}(w_j^T x) \right) \cdot |W|

We want to choose a monotonically increasing function that increases from $0$ to $1$ to be the CDF of our probability distribution. The derivative of the CDF will give us our probability density function. Choosing Sigmoid to be our CDF, we get:

p(s) = g'(s)

g(s) = \frac{1}{1 + \exp(-s)}

The log-likelihood of the data is then given by:

\ell(W) = \sum_{i=1}^n \left(\sum_{j=1}^d \log g'(w_j^T x^{(i)}) \right) + \log |W|

Taking the derivative of the log-likelihood with respect to $W$ and setting it to 0, we get the following gradient descent update rule:

W \leftarrow W + \alpha \left( \left( \begin{array}{c} 1 - 2g(w_1^T x^{(i)}) \\ 1 - 2g(w_2^T x^{(i)}) \\ \vdots \\ 1 - 2g(w_d^T x^{(i)}) \end{array} \right) \left(x^{(i)}\right)^T + \left(W^{-1}\right)^T \right)

See derivation

Limitations

There are certain scenarios where Independent Component Analysis (ICA) might not work well:

If our unmixing matrix $W$ is multiplied by a permutation matrix $P$ , there is no way for us to know about it. In this case we won't be able to know which signal was from which source.

W \rightarrow PW

If a row in the unmixing matrix $W$ is scaled by a constant $\alpha$ , this will just result in the corresponding source being scaled by $1/\alpha$ . There is no way for us to know if scaling has occurred. Therefore, we won't be able to retrieve the true amplitude of our signal.

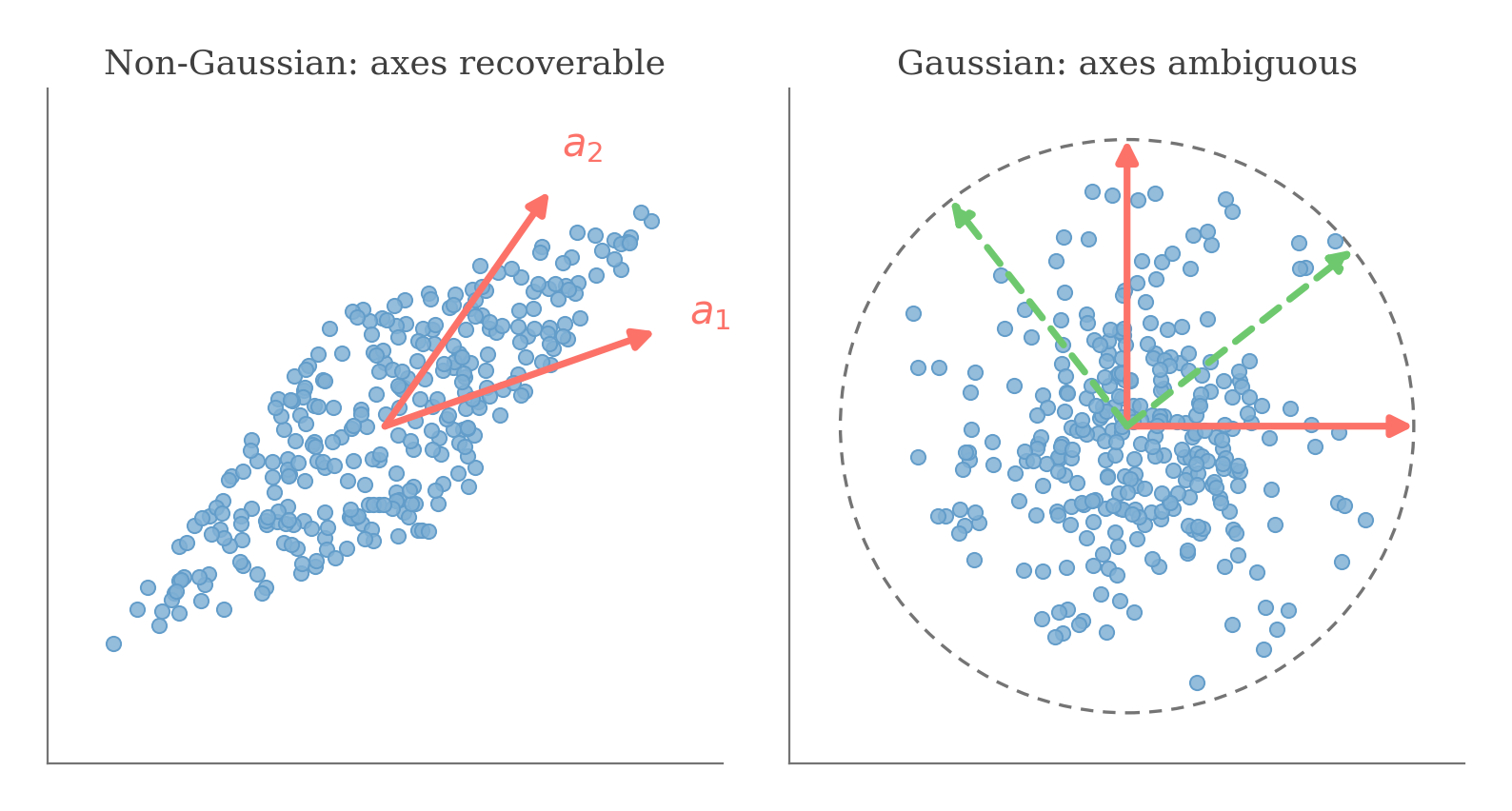

If the data $x$ follows a gaussian distribution, then our sources $s$ will also follow a gaussian distribution. And gaussian distributions are symmetric in nature. Therefore, if our unmixing matrix $W$ is multiplied by a rotation or reflection matrix $R$ , there is no way for us to know about it.

W \rightarrow RW

Moreover, we have assumed that our data points are independent and identically distributed. This is however, not true for time-series data.

Despite all these limitations, ICA still works very well given enough data.
